Pipe Diameters: Dn16mm
Working Pressure Range: 0.8- 1 Bar;
Flowrate: 0.8L，1.38, 2.0, 3.0, 4.0L/H;
Dripper Spacing: From 10cm to 100cm;Support Customization
Wall thickness： From 6mil to 16mil (0.15mm to 0.40mm);
Recommended Filtration: 130 Micron/120 Mesh
Detailed Description and Specifications

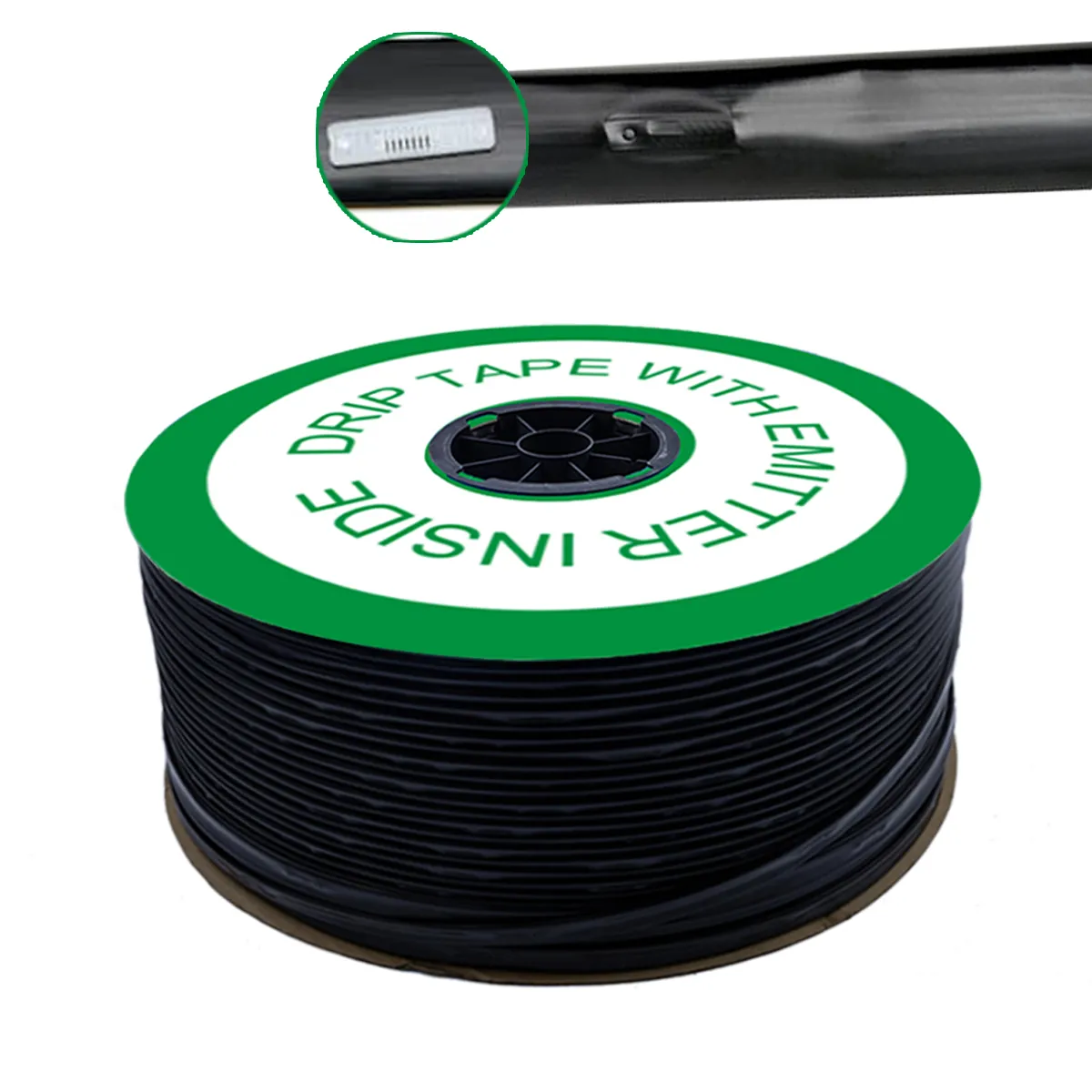

Flat Driplines (Drip Tape) are crafted using advanced flat drippers and high-quality PE materials, ensuring superior flow rate performance, excellent clogging resistance, and outstanding cost efficiency. Available with wall thicknesses ranging from 6 mil to 16 mil (0.15 mm to 0.40 mm) and emitter spacings from 10 cm to 100 cm, support customization, the flow rates offered include 0.8L,1.38L/H, 2L/H, 3L/H, and 4L/H.
Durability and Superior Performance: Manufactured with premium PE raw materials and cutting-edge technology, these drip lines offer exceptional durability, UV resistance, and corrosion resistance, ensuring long-term performance in diverse environments.
Eco-Friendly: Fully recyclable after use, making it an environmentally friendly choice for sustainable farming.

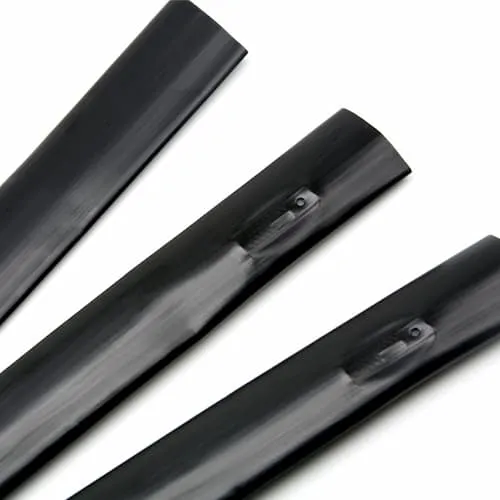

Advanced Flat Drippers: The integrated drippers provide excellent flow rate consistency, enhanced clogging resistance, and superior cost performance, making it a reliable solution for irrigation.
Effortless Handling: No breakage during each roll, facilitating easy operation and efficient mechanical installation.
Cost-Effective: With high production output, rapid manufacturing speed, and stable raw material suppliers, these drip lines offer an economical solution for large-scale field crops.
Consistent Manufacturing Standards: Our production process ensures uniformity in every roll. Rigorous inspection checks are conducted for parameters such as diameter, wall thickness, dripper spacing, bursting pressure, flow rate, CV, emission uniformity, tensile strength, and hydrostatic pressure.
Versatile Options: Available in different wall thicknesses and emitter spacings to meet varying crop needs, with both thin-wall and medium-wall tapes available.
Contact us to discover how we can help improve your irrigation system.

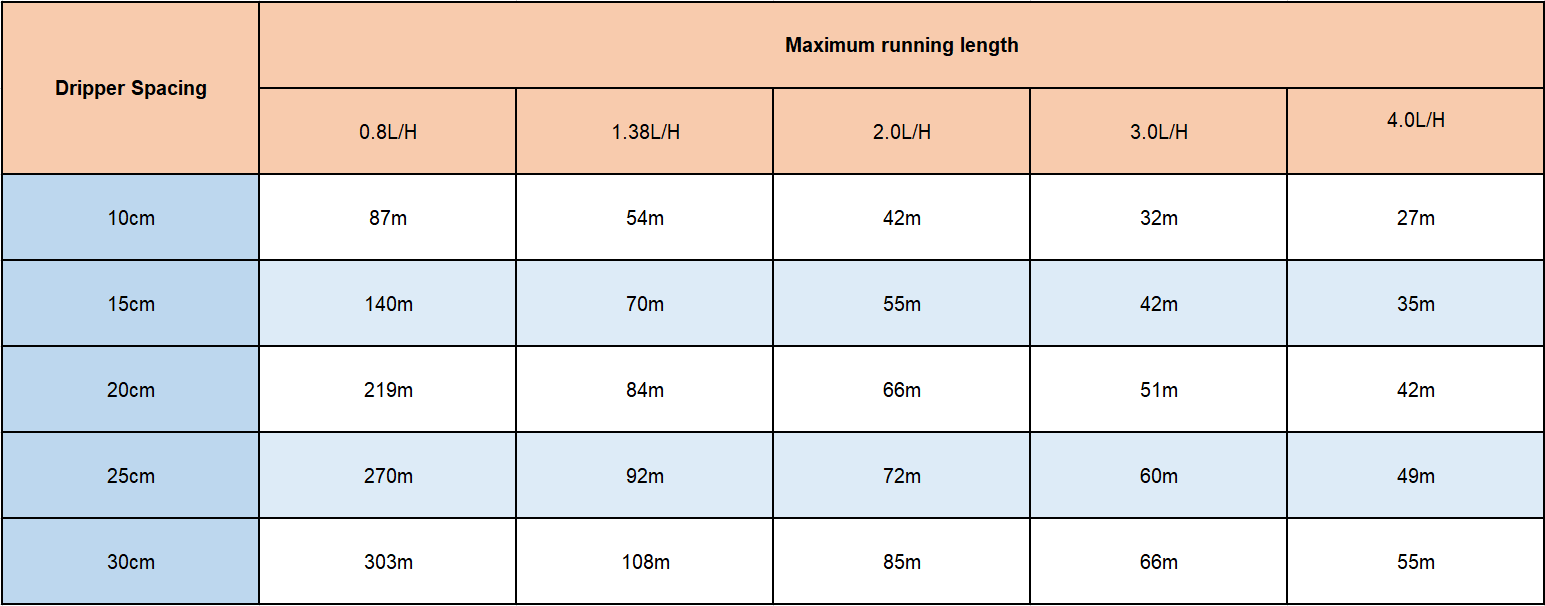

The hydraulic performance of flat emitter drip tape depends on emitter flow rate, emitter spacing, inlet pressure, lateral length and field elevation. Proper matching of these factors is important for maintaining consistent water discharge from the beginning to the end of each irrigation line.
Runnong offers flat emitter drip tape with multiple flow rates and emitter spacing options to suit different crop layouts and irrigation conditions.

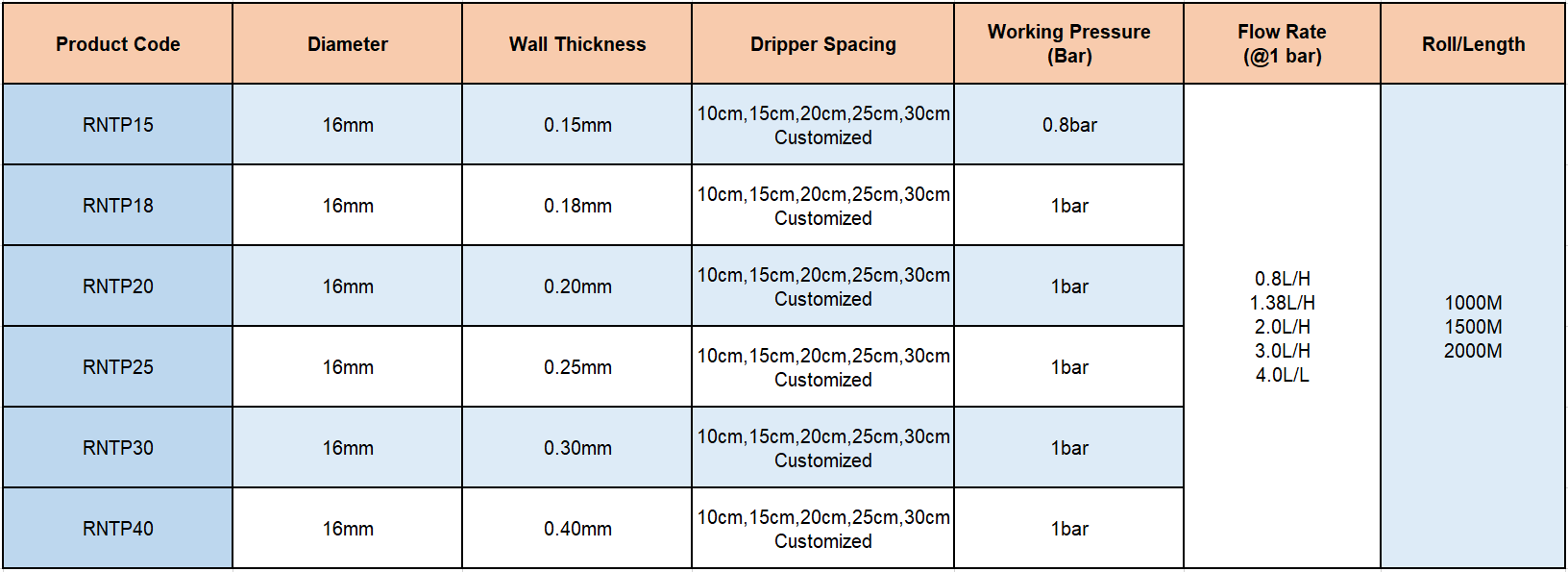

| Diameter | Wall thickness | Dripper Spacing | Work Pressure | Flow Rate | Length/Roll(m) |
| 16mm | 0.15mm | 10cm,15cm,20cm,30cm,40cm, Support Customization | 0.8bar | 0.8L/H 1.38L/H 2L/H 3L/H 4L/H | 1000M 2000M Support customization |
| 0.18mm | 1.0bar | ||||
| 0.2mm | 1.0bar | ||||
| 0.25mm | 1.0bar | ||||
| 0.30mm | 1.0bar | ||||
| 0.40mm | 1.0bar |
*Provide double blue line and packaging customization*
Choosing the right flat emitter drip tape depends on the crop, planting spacing, irrigation area, water source, operating pressure and expected service period. Runnong offers 16mm drip tape with multiple wall thicknesses, emitter spacings and flow rates for different agricultural irrigation projects.
| Selection Factor | Available Options | What to Consider |
|---|---|---|
| Diameter | 16mm | Suitable for common agricultural drip irrigation systems |
| Wall Thickness | 6–16 mil (0.15–0.40mm) | Consider crop cycle, installation method and expected service period |
| Emitter Spacing | 10–100cm | Select according to plant spacing, soil conditions and crop root distribution |
| Flow Rate | 0.8–4.0 L/H | Match crop water demand, irrigation time and available water supply |
| Working Pressure | 0.8–1 bar | Match the hydraulic design of the irrigation system |
| Filtration | 120 mesh / 130 micron recommended | Proper filtration helps reduce emitter clogging |
For distributors, farms and irrigation projects that are unsure which 16mm flat emitter drip tape specification to select, send us your crop type, planting spacing, field size, water source and required irrigation length. Our team can help match the appropriate configuration.
Flat emitter drip tape is available in different wall thicknesses to match different crop cycles, installation conditions and durability requirements.
Choosing the thickest tape is not always necessary. The appropriate thickness should balance service requirements, installation environment and project cost.
| Wall Thickness | Typical Selection Consideration |
|---|---|
| 6 mil / approx. 0.15 mm | Cost-sensitive seasonal irrigation |
| 7–8 mil | General vegetable and field crop applications |
| 10–12 mil | Applications requiring greater installation strength |
| 15–16 mil / up to approx. 0.40 mm | More demanding field conditions or projects requiring higher mechanical durability |
Thinner drip tape is commonly selected for short-cycle crops and seasonal agricultural projects where the tape is installed under controlled field conditions.
Typical applications include:
● Vegetables
● Melons
● Potatoes
● Corn
● Cotton
● Other annual row crops
Medium-thickness drip tape provides additional mechanical strength and is suitable when installation conditions are more demanding.
It may be preferred when:
● Mechanical laying equipment is used
● Soil conditions create greater abrasion risk
● Longer field operation is required
● Additional tensile strength is preferred
Thicker drip tape offers greater resistance to mechanical damage during handling and installation.
It can be considered for applications where durability is a higher priority than minimum material cost.
Actual service life depends on UV exposure, pressure, installation method, soil conditions, maintenance and handling. Contact Runnong if you need help selecting the appropriate wall thickness for your project.

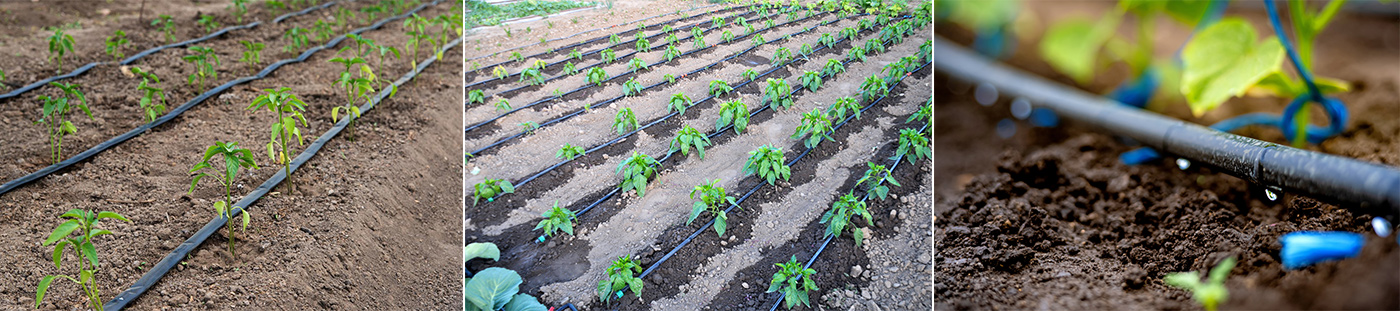

Widely used in agricultural planting, it can be buried shallowly underground for precise root irrigation.
Suitable for long-term crop cultivation in greenhouses, nurseries, orchards, and other areas.
Suitable for multi-season crops.
Reduces water waste by 70%.
Increases fertilizer utilization by 50%, making it suitable for integrated fertigation and irrigation operations.
Increases crop yield by 40%, providing precise root irrigation.
Improves land utilization and reduces soil compaction.
Interested in pricing and specifications for Flat Emitter Drip Tape? Click here to request a customized quote, and we'll offer you the most competitive prices.
Our agricultural drip tape is designed for precise water and fertilizer delivery in row crops, vegetables, greenhouses and large-scale farming projects.
| Application | Typical Crops / Scenarios | Selection Focus |
|---|---|---|
| Vegetable Irrigation | Tomato, pepper, cucumber, onion and other row vegetables | Match emitter spacing with planting distance |
| Field Crop Irrigation | Corn, cotton, potato and other field crops | Consider irrigation area, required flow and tape length |
| Greenhouse Irrigation | Vegetables, seedlings and intensive planting | Precise water distribution and fertigation compatibility |
| Orchard & Vineyard Irrigation | Fruit trees and grape planting | Consider crop spacing and irrigation layout |
| Large Farm Projects | Commercial agricultural irrigation | Focus on hydraulic design, roll length, filtration and installation efficiency |
Flat emitters are integrated directly into the tape, making inline flat emitter drip tape suitable for projects requiring lightweight installation, flexible emitter spacing and economical irrigation across large planting areas.
For large farms, distributors and irrigation contractors, specifications can be selected according to crop layout and project requirements.
Flat emitter drip tape and cylindrical drip line are both used for agricultural drip irrigation, but they are designed for different project requirements.
| Feature | Flat Emitter Drip Tape | Cylindrical Drip Line |
|---|---|---|
| Structure | Thin-wall tape with integrated flat emitters | PE pipe with cylindrical inline emitters |
| Main Advantage | Lightweight and cost-effective | More robust construction |
| Installation | Suitable for manual or mechanized laying | Commonly used for longer-term installations |
| Typical Applications | Row crops, vegetables, greenhouses and large field crops | Orchards, vineyards and longer-term irrigation systems |
| Selection Factors | Thickness, emitter spacing and flow rate | Pipe diameter, emitter spacing, flow rate and project layout |
If your priority is economical irrigation for seasonal or large-area crop production, flat dripper drip tape can be an efficient option. For longer-term installations, you can also compare our drip pipe solutions before selecting the system.
Runnong supplies flat emitter drip tape for agricultural distributors, irrigation contractors, farm projects and private-label customers. Available customization includes wall thickness, emitter spacing, flow rate, roll length, marking lines and packaging.
For OEM or bulk orders, please provide your required diameter, thickness, emitter spacing, flow rate, roll length, quantity and destination market so that we can prepare the appropriate specification and quotation.
Correct installation and maintenance are important for achieving stable flow and reducing premature damage or emitter blockage.
● Flush the mainline and sub-main before connecting drip tape.
● Install suitable filtration equipment according to irrigation water quality.
● Confirm that operating pressure is within the recommended range.
● Check connectors, valves and fittings for proper compatibility.
Lay the drip tape along the crop row without excessive stretching, twisting or sharp bending.
For mechanical installation:
● Adjust laying equipment to avoid excessive tension.
● Prevent the tape from rubbing against sharp metal surfaces.
● Avoid damaging the tape when covering it with soil.
● Keep the emitter orientation consistent according to installation requirements.
When the irrigation system is first operated:
● Increase pressure gradually.
● Check for leaks at fittings and connectors.
● Confirm pressure at both the inlet and end of the lateral.
● Observe emitter discharge along the line.
● Flush the end of each drip tape lateral before closing it.
To maintain reliable irrigation performance:
● Clean filters regularly.
● Flush drip tape laterals periodically.
● Monitor inlet and end-line pressure.
● Inspect for physical damage or leakage.
● Check water quality when clogging becomes frequent.
● Avoid operating above the recommended working pressure.
For fertigation systems, flush the irrigation lines with clean water after fertilizer application when necessary.
Baoding Runnong Irrigation Co., Ltd. has over 13 years of experience, offering high-quality irrigation products and one-stop irrigation solutions since 2012.
Headquartered in Baoding, China, with two factories covering 10,000 square meters and over 70 employees, Runnong operates 15 production lines and offers both OEM and ODM services.
Runnong provides full-size customization for products like drip tape, micro-irrigation rain pipe, PE flat hose, and PVC flat hose, catering to specific needs of over 150 countries.
Serving 80 distributors worldwide, we provide detailed market analysis and product customization services for different countries and regions.
We offer customized production services for brand distributors, including packaging, thickness, and length.
Large production volumes, fast production speeds, and a stable raw material supply chain make our drip irrigation tape economical and reliable.
As a professional drip irrigation tape factory in China, our team has over 10 years of experience in drip irrigation product manufacturing.
We offer a one-year warranty on our drip irrigation tape and drip irrigation tubing. You can get professional advice on your drip irrigation project from our experts.
It is a thin-wall drip irrigation tape with flat emitters integrated inside to regulate water flow and improve irrigation uniformity.
6–8 mil is suitable for seasonal use, while 10–16 mil offers greater strength for more demanding field conditions.
Choose based on crop spacing, soil type and irrigation requirements. Closer spacing provides more continuous wetting.
Maximum lateral length depends on flow rate, emitter spacing, inlet pressure and field slope.
Use proper filtration, flush the system regularly and keep water quality and operating pressure under control.
Flat emitter tape is lighter and ideal for seasonal crops, while cylindrical drip line is generally thicker and suited to longer-term use.
Yes. Wall thickness, emitter spacing, flow rate, roll length, printing, labels and packaging can be customized.
Please provide diameter, thickness, emitter spacing, flow rate, roll length, quantity and destination.
The minimum order quantity is 1 × 20ft container.
The typical delivery time is 10–15 days after order confirmation.
Not sure which wall thickness, emitter spacing or flow rate fits your irrigation project?
Tell us your crop type, planting spacing, irrigation area, water source, required tape length and destination market. Our team can help recommend a suitable flat emitter drip tape specification and provide a quotation for bulk or OEM orders.
