How Do You Choose the Right Micro Sprinkler Flow Rate, Wetting Diameter and Spacing?

You size a micro sprinkler from three numbers, not from photos: liters per hour per head, wetting diameter at your actual working pressure, and the spacing those two produce. Get the sequence wrong and you will keep correcting downstream, because every other component — filter capacity, pressure regulator, lateral diameter, zone size — is calculated from those three values. If you can only supply one input, give your plant spacing and available pressure; that is enough to derive the rest, which is what we normally do when a grower sends us a sketch through our micro sprinkler program, part of our wider micro irrigation range. The conditional part: below roughly half a hectare with uniform beds, almost any head in the 30 to 60 liter range on a regulated line works and further analysis changes little; above that, or on sloping ground, or where crops are mixed in one zone, the sizing decision is the difference between uniform emergence and a permanent wet-and-dry pattern you will spend every season chasing.

In short: never compare two heads on flow alone. Read flow rate and wetting diameter together, at the pressure you will actually run, and let that pair set your spacing. Runnong can confirm both against your working pressure before you order.

Which Numbers on a Micro Sprinkler Datasheet Actually Decide the Outcome?

Two of these are often quoted without their conditions. Wetting diameter measured at 2.0 bar is not the wetting diameter you will see at 1.2 bar, and a flow rate published without its reference pressure is not a specification. Ask for both together before comparing two products.

How Do Flow Rate and Wetting Diameter Set Your Spacing?

Spacing follows coverage, and the rule that holds across most layouts is simple: place heads so their patterns overlap by roughly 30 to 50 percent. Practically, multiply the wetted diameter by about 0.7 to get center spacing, then round down rather than up if your terrain is uneven.

Soil sets the second constraint. Sandy soils infiltrate fast and resist lateral spreading, so a higher flow delivered over a shorter set wets deeper than the same volume trickled out slowly, and sandy sites often need two smaller heads per tree rather than one larger one. Clay soils spread water laterally and seal easily, favoring lower flow rates and longer sets. On steep rows, assume the low end of your pressure range will govern the last head on the line unless you regulate each lateral.

The third constraint is the zone itself. Multiply heads per row by rows per zone by liters per hour, then compare that total against what your filter and mainline can deliver at acceptable head loss. When the arithmetic does not close, the usual correction is to split the zone rather than to raise the pressure, because raising pressure pushes the heads outside their designed range and increases evaporation losses at the same time.

Which Micro Sprinkler Construction Should You Order?

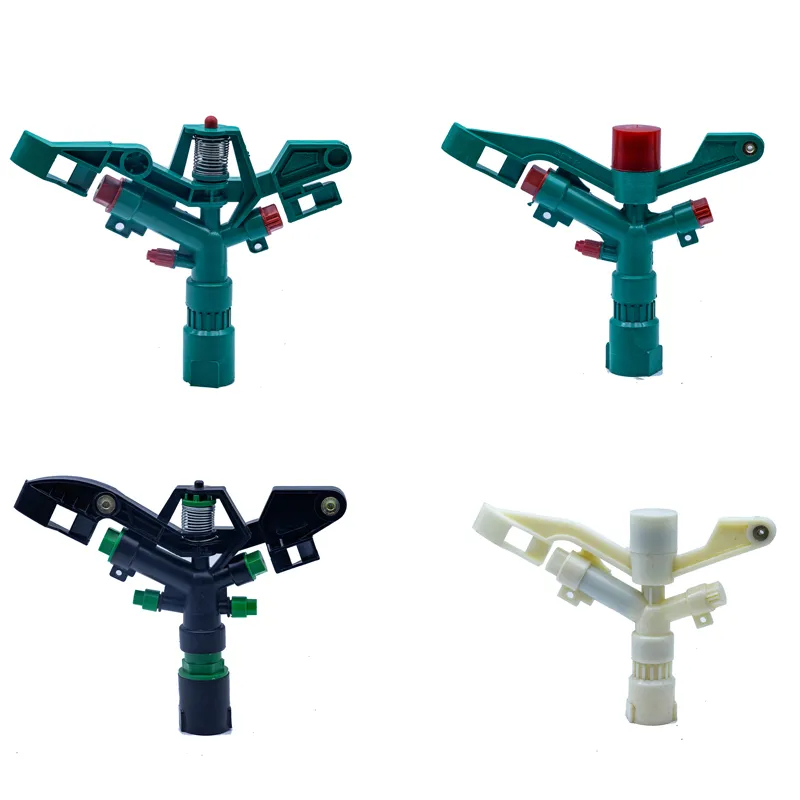

Runnong builds two constructions in this family. Our standing rotating micro sprinklers suit open-field trees and row crops where you want to see and service each head, and our frameless rotary sprinkler hangs down for greenhouse and overhead installations, where the anti-drain valve on the hang-down type stops water bleeding out of the line after shutdown. Both use engineering plastic treated with anti-aging and anti-ultraviolet modification, and both use our anti-clogging design, which matters more than it sounds once water carries any organic load. If your comparison is really between overlapping spray and flat tape coverage for vegetable beds, we set out that trade-off in our article on rain hose versus micro sprinklers.

What Filtration and Pressure Does This Need Beyond a Drip System?

Micro sprinkler nozzles pass larger particles than thin-wall drip emitters, so they tolerate coarser filtration, but they pay for it elsewhere: they need a stable pressure band to rotate correctly. A rotating head below about 0.5 to 1.0 bar either stops turning or throws coarse droplets that beat the soil surface, while higher pressure converts the pattern into mist that drifts.

In practice this means three things upstream. Fit a filter rated comfortably above your zone flow rather than just at it, because a filter working at its limit accumulates head loss faster and its pressure drop eats into your band. Fit a pressure regulator matched to the head rather than to the pump, since most pumps deliver far more than a rotating micro sprinkler wants. Keep a readable pressure gauge either side of the filter so a blocked screen is discovered by the reading rather than by the crop. Our range covers manual screen filters used for primary and in-field backup filtration, and the wider selection logic sits in our drip irrigation filter range.

Where Do Micro Sprinkler Installations Fail After They Are Commissioned?

Most of these are cheap to design out and expensive to fix once the crop is in the ground, which is why the Runnong technical team asks about pressure before quoting a head, which is why the shortest useful answer to "which micro sprinkler do I need" is usually a question back about pressure.

FAQ

Q: Do we need pressure-compensating micro sprinklers on flat ground?A: Usually not, provided each zone runs on a regulator and lateral lengths stay moderate. They earn their cost on slopes, very long laterals, and zones where the first and last head differ meaningfully in elevation.

Q: How much filtration is enough for micro sprinklers compared with drip tape?A: Coarser than tape is acceptable, because nozzle passages are larger, but do not size the filter to the nozzle alone. Size it to your total zone flow with margin, since head loss across an undersized screen removes the pressure your heads need to rotate.

Q: Can one micro sprinkler serve each tree in a young orchard?A: Often yes for young trees, and later often not. As canopy and root volume expand, the usual move is either two smaller heads per tree or a step up in flow with the same spacing, so plan for the head count you will need at maturity rather than at planting.

Q: What information should we send with a request for quotation?A: Crop and plant spacing, total area, water source and its known sediment behavior, available pressure and flow, preferred mounting method, and target irrigated area per plant. With those we can propose a head, spacing and zone layout rather than quoting a generic part number.

Q: Can you supply micro sprinklers alongside tape, hose and filters for one project?A: Yes. Runnong supplies micro sprinklers alongside the drip tape, rain pipe, PE and PVC hose and filtration used in the same system. We produce these from two factories running fifteen lines with OEM and ODM support, so one project can be sourced, specified and packed as a single package.
