What Do You Need to Specify Before Ordering Mainline Fittings and Valves?

Oct. 09, 2026

You need four things before a fitting or valve order can be correct: pipe outside diameter and wall class, the thread form your pump and filter connections use, the maximum working pressure your system can see including water hammer, and the role each component plays from pump to lateral. Miss any one and you get a shipment that fits together on the bench and weeps under load. The useful conditional: if you are replacing components on an existing system, measure one fitting and take a photograph of the thread rather than guessing, because BSP and NPT look similar and do not seal together; if you are designing new zones, specify the whole set at once from one supplier so diameters, threads and ratings are internally consistent. Our compression fitting range for PE mainlines, listed on our PP accessories page, is normally quoted from exactly that four-item list.

In short: fittings fail from mismatch, not from weakness, which is why Runnong quotes from measurements rather than part names. Size is not universal across brands, thread forms are not interchangeable, and published pressure ratings assume ambient water temperature.

Which Components Sit Between the Pump and the Drip Tape?

Position	Component	Job	What happens when it is missing or mismatched
Pump outlet	Threaded adaptor, male or female	Changes pump port to pipe thread	Crossed thread forms gall and leak immediately
Start of mainline	Ball valve	Isolation for service	Whole system must be shut to change one component
After filtration	Non-return valve	Stops reverse flow toward pump and injector	Backflow carries fertilizer upstream and drains the line each cycle
Along mainline	Compression tee	Splits supply to submain	Unclamped take-offs blow out under surge
From mainline to lateral	Compression saddle	Adds a take-off without cutting the main	Undersized saddles restrict flow and starve the zone
Direction changes	Elbows, equal or threaded, including 45 degree	Route around obstacles	Sharp bends add head loss and stress the pipe wall
Zone control	Three-way or four-way main pipeline valve	Divides or directs flow between zones	Operators throttle with the wrong valve and pressure becomes unpredictable
End of line	End plug	Line closure, and flushing access	A removable end plug doubles as the flushing port you will use every season

Two here are ordered last and needed first. The end plug is not only a closure but the drain point used whenever a lateral is flushed, and the non-return valve protects the filter housing and injector upstream. Failure patterns across this part of the system are collected in our write-up on common fitting failures.

Which Pressure Rating and Thread Standard Should You Order?

This is the purchase decision that decides whether the shipment installs cleanly, and it is made from two independent choices.

Choice	Typical options	Applies when	Consequence of getting it wrong
Pressure rating	PN10 for gravity and low-head systems, PN16 and above for pumped mains	Match to shut-off head plus surge margin, not to running pressure alone	Burst joints at start-up, or deformed sealing rings after one season
Thread form	BSP or NPT, depending on pump and equipment origin	Follow the equipment you are connecting to, and standardize across the project	Threads appear to engage then strip or weep because the pitch and flank angle differ
Pipe basis	Outside diameter versus nominal size	Confirm before quoting, since PE pipe is sold by outside diameter	A nominal match that is one or two millimeters out will not seal under pressure
Sealing method	Compression grip ring on PE body, or elastomer seal in threaded joints	Compression for PE-to-PE joints, thread sealant on all tapered threads	Grip fittings used on the wrong wall class slip; sealant on parallel threads does nothing

Temperature is the quiet exception: published ratings assume water near ambient temperature, so hot-climate or full-sun installations need margin above the rating.

How Do You Size Fittings to the Pipe and the Zone Flow?

Work from the pipe outward, not from the part number. Record outside diameter and wall thickness of every pipe first, because two pipes of the same nominal diameter routinely differ.

Step	What to determine	Typical error	How to check
Zone flow	Total liters per hour the zone demands	Sizing from pipe size alone	Multiply heads by discharge, then compare to the filter rating
Pipe size	Outside diameter and wall class per run	Assuming nominal size fixes the dimension	Measure the actual pipe with a caliper
Fitting size	Matching outside diameter and grip range	Ordering by appearance	Check the sizing table against your measurement
Head loss	Acceptable loss at peak flow	Ignoring loss through valves and elbows	Read pressure either side of each control component
Spares	Repair stock for mis-cuts	Ordering exactly the design count	Add a defined spare quantity for the three most damaged parts

When in doubt, oversize the valve rather than the pipe. Restrictive valves generate localized head loss, and the pressure drop shows up as poor performance at the far end of the zone rather than as a failure near the pump.

Which Fitting Type Should You Use for Each Connection Job?

Job	Recommended component	Why	Limit
Joining two PE pipe ends	Compression coupler	No tools beyond a wrench, reliable on clean cuts	Cut must be square and deburred or the seal will not seat
Taking a lateral off a main	Compression saddle	Adds an outlet without dismantling the line	Capacity limited by saddle bore
Splitting a line two ways	Equal or reducing tee	Direction change and division in one body	Will not absorb misalignment
Connecting to threaded equipment	Male or female adaptor	Converts pipe to thread	Thread form must match exactly
Isolating a section	PVC ball valve	Positive shut-off, visible handle position	Low-cost units are not for throttling
Preventing reverse flow	Non-return valve	Protects pump, filter and injector	Adds head loss; oversize where loss matters
Closing or flushing a line	End plug	Closure and service access	Thread form and rating still apply
Routing around an obstruction	Elbow, including 45 degree	Gradual direction change reduces loss	Intermediate angles are rarely stocked

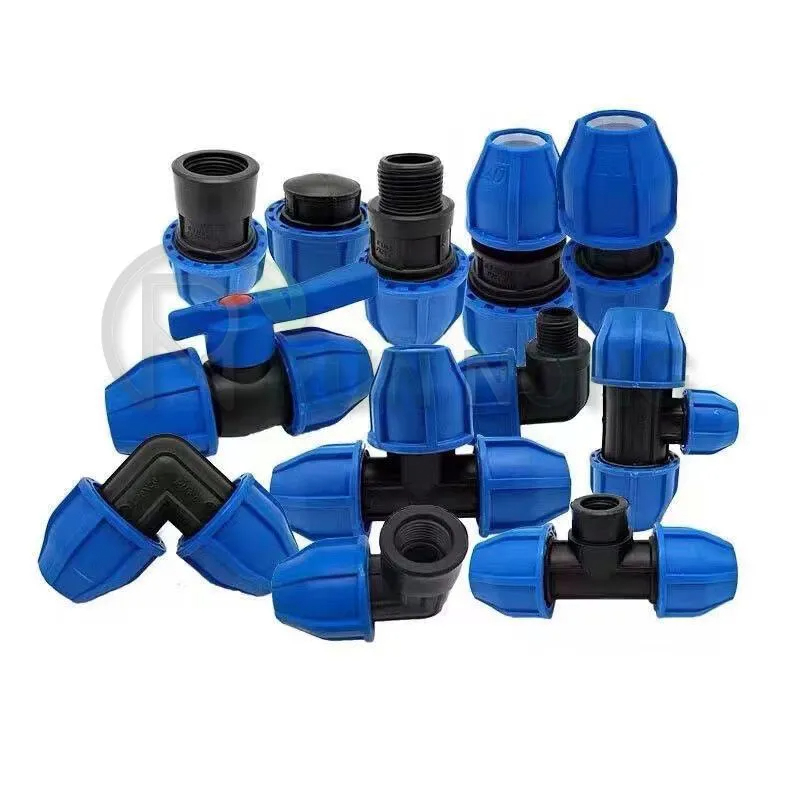

Runnong supplies this range as compression fittings under our Yibiyuan pipeline connection line: adaptors, couplers, end plugs, elbows and 45 degree variants, tees, female and compression saddles, PVC ball valves, non-return valves and piplets. Our main pipeline valves are made from HDPE for wear resistance and supplied as three-way and four-way models where a single body has to divide or redirect flow between zones.

What Goes Wrong Most Often After These Parts Are Installed?

Failure	Root cause	Prevention at purchase stage
Weeping joint at startup	Thread form mismatch or no sealant on tapered threads	Confirm BSP versus NPT on every threaded item before ordering
Coupler slips off under pressure	Fitting specified by nominal size instead of measured outside diameter	Verify outside diameter and wall class, then match the grip range
Cracked bodies after one season	Over-tightening, or unmodified material in strong sunlight	Specify UV-stable material, avoid pipe wrenches on plastic nuts
Zone starves at the far end	Valve or saddle bore too small for zone flow	Size control components by flow, not by pipe size
Filter housing damaged by backflow	No non-return valve on injection circuits	Include the non-return valve in the base bill of materials
Leaks along the main after winter	Lines not drained, expansion of trapped water	Fit end plugs that can be removed for drainage and flushing

Nearly every one costs more to fix in the field than to prevent on the drawing, and none are visible in a product photograph.

What Should Be on the Purchase Order Instead of a Part List?

Write the order so it can be checked rather than guessed. State pipe outside diameter and wall class beside each fitting reference, name the thread form explicitly even when it seems obvious, repeat the required pressure rating per line, and list spare quantities for couplers, saddles and end plugs as separate items rather than as a hidden percentage. Ask for written confirmation that the set is dimensionally consistent and keep it with the delivery paperwork.

Runnong supports this kind of consolidated order: OEM and ODM production across two factories running fifteen production lines, and all products carry a warranty period. If a quality, packaging or delivery problem appears inside that period, our after-sales team proposes a solution, whether replacement, repair or refund, within 24 hours. Our team also handles complete-system enquiries where the fitting set, tape, hose and filtration are quoted together, described in our service overview.

FAQ

Q: Can we order fittings alone for an existing system, or do we need a whole package?

A: Components alone are fine and common for distributors and contractors replacing stock. Send measurements rather than names: pipe outside diameter, thread form confirmed from an existing fitting, and the maximum working pressure the line sees.

Q: Are BSP and NPT fittings interchangeable if they tighten by hand?A: No. They can start to engage and appear to fit, then either weep or strip under pressure. The thread pitch and flank angle differ, so the joint should never be forced to make it fit.

Q: What pressure rating should we use for a pumped main?A: Size to shut-off head plus surge margin rather than running pressure. PN10 suits gravity and low-head systems; PN16 and above suits pumped mains and lines with frequent valve operation.

Q: Do you provide UV-resistant material and custom marking?A: Our PP accessory and valve programs are produced in-house with OEM and ODM support, so material and packaging requirements belong in your enquiry rather than being discovered at delivery. Send the requirement and we will confirm what we can produce before you commit.

Q: How much spare quantity should we add to the fitting order?A: Add a defined spare line for couplers, saddles and end plugs rather than a flat percentage, since those are what install crews damage. Size it to crew count and installation duration.

Get Your Mainline Fitting and Valve Set Quoted by Runnong

Send your pipe dimensions, thread form, pressure requirements and zone flow to rn-lqh@baodingrunnong.com. Runnong will return a matched set of compression fittings, valves, saddles and plugs checked for dimensional consistency, quoted with spare quantities listed separately and shipped with the rest of your order.
