·Efficient water conservation and outstanding utilization rate of water resources;
·Unmanned operations reduce manual labor;
·Low maintenance cost and long service life;
·Suitable for large-scale planting.

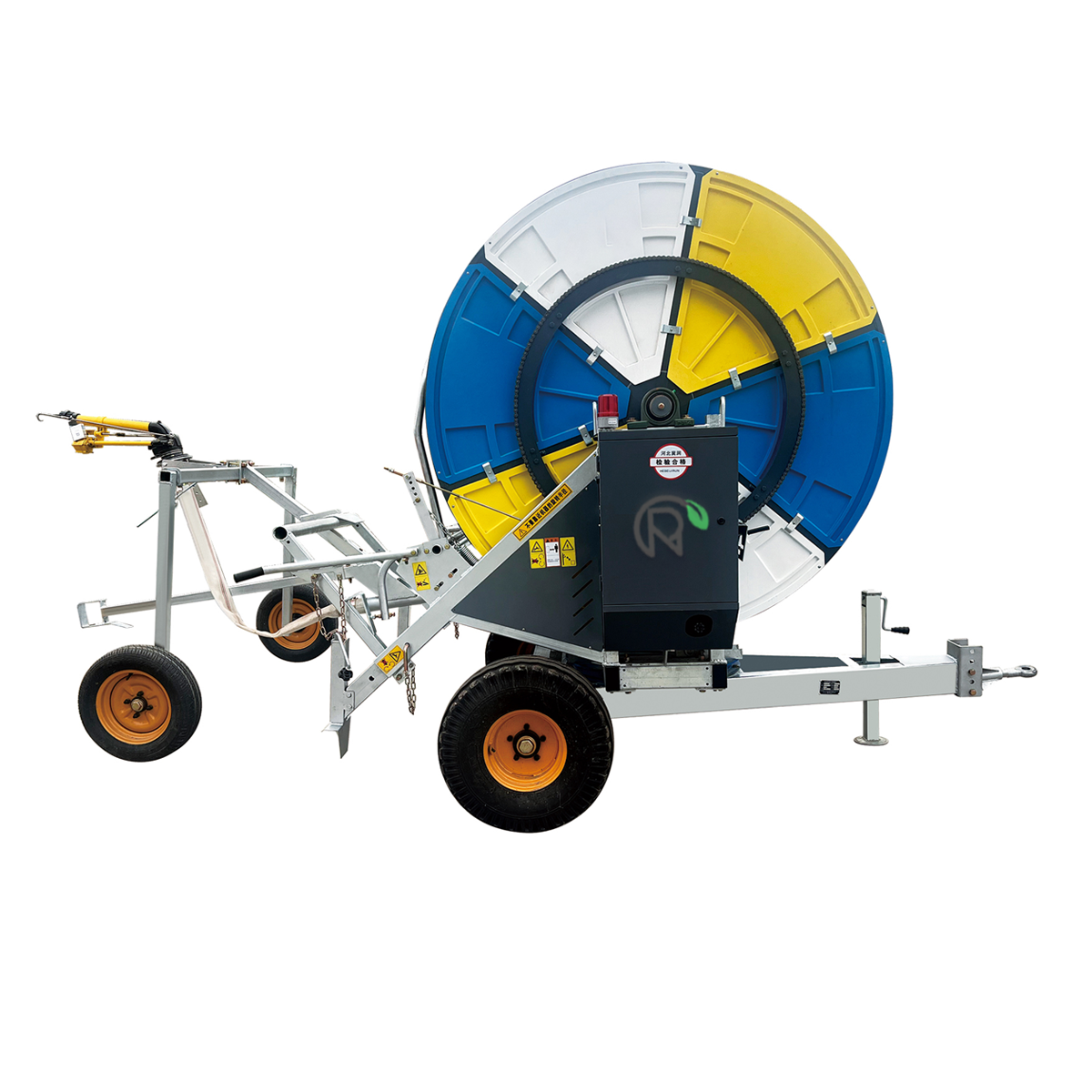

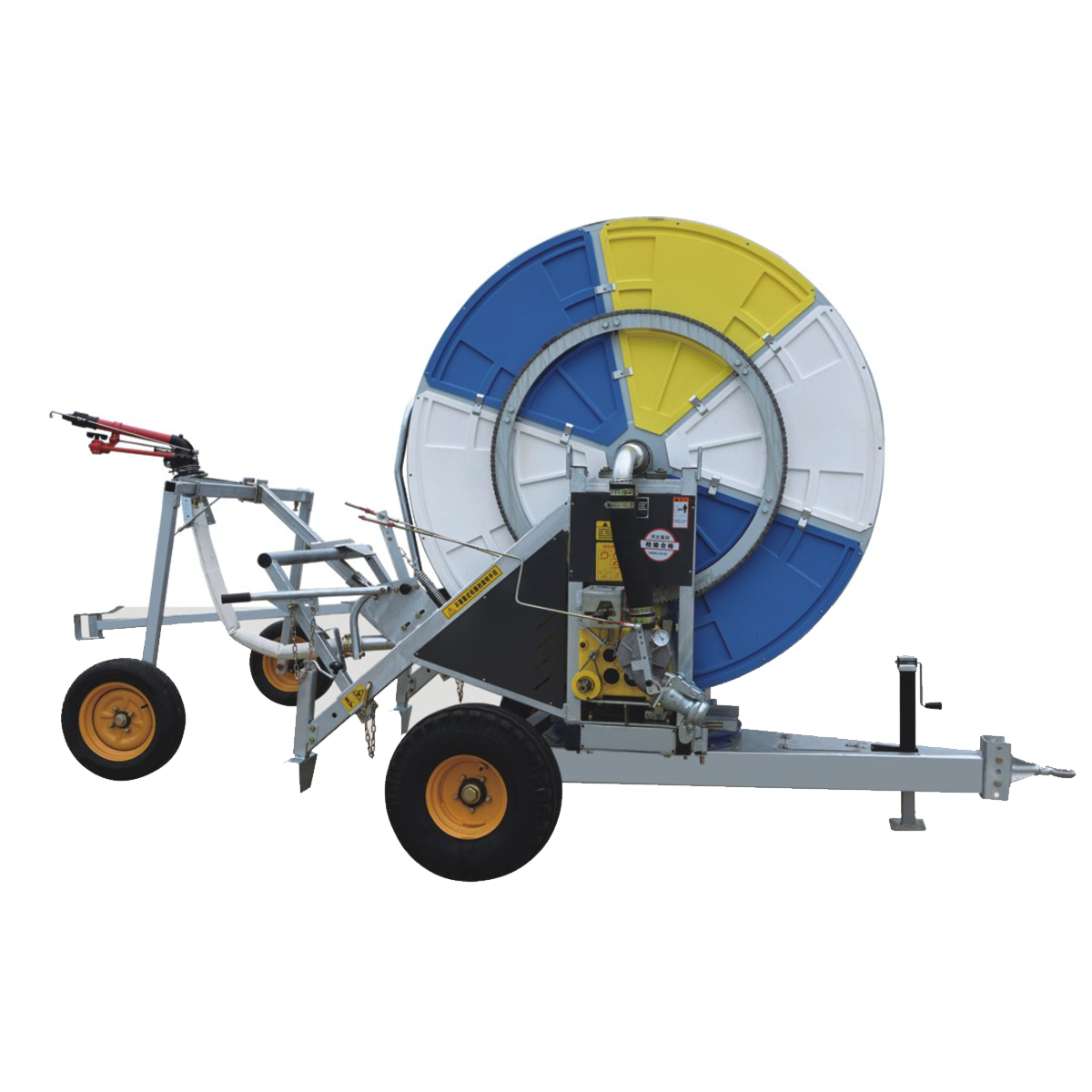

The 8PJS series winch type sprinkler irrigation machine isdriven by a water turbine, and the winch is driven by a vari-able speed device and chain drive, which pulls the sprinklertruck to automatically move and spray. Mainly used for irri-gating large areas of farmland, and the water volume can becontrolled according to the size of the water demand. It canalso be used for irrigation of pastures, parks, urban lawnsand dust removal spraying operations in factories andmines.
Runnong is a trusted provider of advanced irrigation solutions, specializing in high-quality reel irrigation systems. We focus on durability, water efficiency, and ease of use, helping farmers optimize resources and improve crop yields.
The Winch Type Sprinkler Irrigation Machine is driven by a water turbine power drive. It uses a large-section, low-pressure design, which allows for a high recovery speed even at low flow rates. The turbine's rotation speed is transferred via a shaft to a dual-speed belt transmission system, which then passes the motion to the reducer. Once the speed is reduced, the chain drive generates a high torque, driving the winch to automatically retract the PE pipe. Simultaneously, high-pressure water flows directly from the turbine through the PE pipe to the nozzle. The nozzle evenly sprays the high-pressure water onto the crops, dispersing it into fine droplets that fall uniformly. As the PE pipe moves, continuous spraying operation is maintained without interruption.
Portability and Versatility: Built with wheels and durable construction, these units are easily movable, ideal for covering various fields and adapting to irregular shapes or obstacles.
Reduced Labor and Costs: Offering a low-labor, cost-effective solution for large-scale irrigation compared to traditional methods.
Enhanced Water Efficiency: Ensures even water distribution, minimizing evaporation and runoff. Adjustable droplet sizes prevent soil compaction and protect crops.
Wide Crop Compatibility: Perfect for irrigating diverse crops such as cereals, vegetables, orchards, and fodder, providing precise and on-demand watering.
Smart Technology Integration: Advanced systems include IoT-based monitoring, GPS guidance, and automated controls for remote management and optimized scheduling.
Long-Lasting and Low Maintenance: Built to last over 15 years with minimal maintenance requirements, ensuring long-term reliability.
Discover how Runnong’s efficient irrigation systems can transform your farming practices. Contact us now for a customized solution!
| ITEM NO | ITEM | UNIT | DESIGN VALUE | ||
| 1 | Model | 8PJS-75/300 | 8PJS-75/400 | 8PJS-75/500 | |
| 2 | Dimensions (length x width x height) | mm | 4600 X 2050 X 2650 | 5100 X 2250 X 2800 | 5680 X 2350X 3050 |
| 3 | Drive Mode | / | Water turbine drive | ||
| 4 | Winch Rewinding Speed Change Mode | / | Valve+Geabox+Shifting | ||
| 5 | Pipe Material | / | PE | ||
| 6 | Outer Diameter of Pipe | / | ⌀75 | ||
| 7 | Wall Thicknes of Pipe | mm | 6.3 | ||
| 8 | Pipe Length | m | 300 | 400 | 500 |
| 9 | Spray Nozzle Model | / | Longmen stye | ||
| ITEM NO | ITEM | UNIT | DESIGN VALUE | ||
| 1 | Model | 8PJS-90/300 | 8PJS-90/400 | 8PJS-90/500 | |
| 2 | Dimensions (length x width x height) | mm | 5180 X 2100 X 3050 | 5350 X 2250 X 3200 | 5500 X 2450 X 3350 |
| 3 | Drive Mode | / | Water turbine drive | ||
| 4 | Winch Rewinding Speed Change Mode | / | Valve+Geabox+Shifting | ||
| 5 | Pipe Material | / | PE | ||
| 6 | Outer Diameter of Pipe | / | ⌀90 | ||
| 7 | Wall Thicknes of Pipe | mm | 8.2 | ||
| 8 | Pipe Length | m | 300 | 400 | 500 |
| 9 | Spray Nozzle Model | / | Longmen stye | ||
| ITEM NO | ITEM | UNIT | DESIGN VALUE | ||
| 1 | Model | 8PJD-75/300 | 8PJD-75/400 | 8PJD-75/500 | |
| 2 | Dimensions (length x width x height) | mm | 4600 X 2050 X 2650 | 5100 X 2250 X 2800 | 5680 X 2350X 3050 |
| 3 | Drive Mode | / | Electric Drive | ||
| 4 | Winch Rewinding Speed Change Mode | / | Motor+Contoller Speed Requlation+Gearbox | ||
| 5 | Pipe Material | / | PE | ||
| 6 | Outer Diameter of Pipe | / | ⌀75 | ||
| 7 | Wall Thicknes of Pipe | mm | 6.3 | ||
| 8 | Pipe Length | m | 300 | 400 | 500 |
| 9 | Spray Nozzle Model | / | Longmen stye | ||
| ITEM NO | ITEM | UNIT | DESIGN VALUE | ||
| 1 | Model | 8PJD-90/300 | 8PJD-90/400 | 8PJD-90/500 | |
| 2 | Dimensions (length x width x height) | mm | 5180 X 2100 X 3050 | 5350 X 2250 X 3200 | 5500 X 2450 X 3350 |
| 3 | Drive Mode | / | Electric Drive | ||
| 4 | Winch Rewinding Speed Change Mode | / | Motor+Contoller Speed Requlation+Gearbox | ||
| 5 | Pipe Material | / | PE | ||
| 6 | Outer Diameter of Pipe | / | ⌀90 | ||
| 7 | Wall Thicknes of Pipe | mm | 8.2 | ||
| 8 | Pipe Length | m | 300 | 400 | 500 |
| 9 | Spray Nozzle Model | / | Longmen stye | ||
Ready to boost your crop yields and save water? Reach out to our team today for expert advice and top-tier irrigation systems.
