Made of a balanced polyester yarn spiral wrap, longitudinal strength member and Grade A+ PVC tube cover to prevent separation. The X lining can improve the tensile strength. Mainly used as the mainline for drip irrigation system and micro sprinkler system.
Detailed Description and Specifications

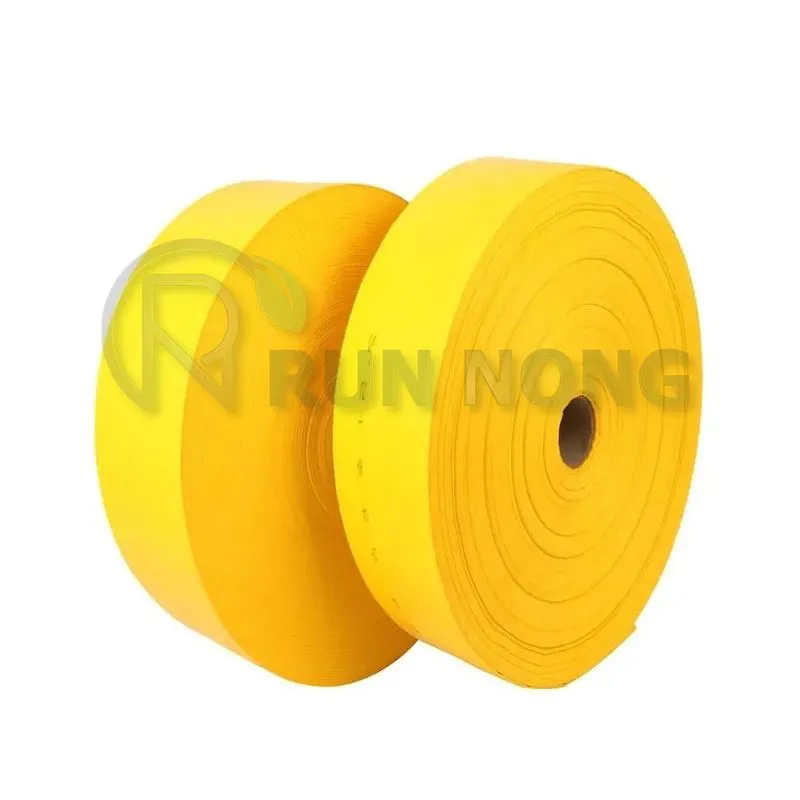

PVC CANVAS FLAT HOSE
Polymer coating is resistant to freezing and aging: it has good resistance to acid and alkali, and better compression and explosion resistance. Soft high-density weaving, sturdy and tear resistant: sturdy and durable, tear resistant, even if pulled hard with both hands, it cannot be torn apart

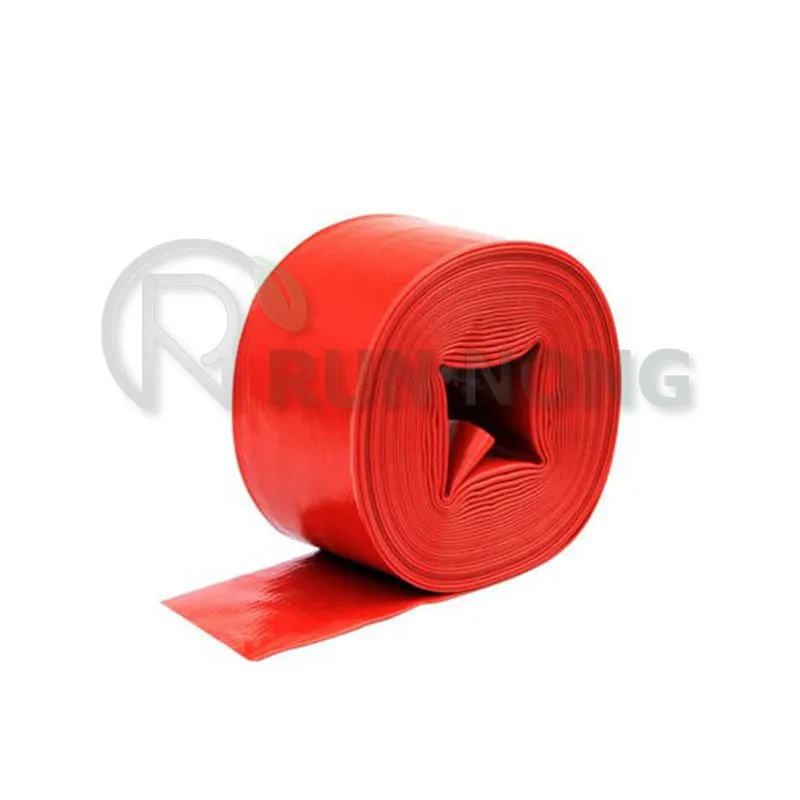

PVC FLAT HOSE(HIGH PRESSURE)
Environmentally friendly PP material: Adopting a new type of environmentally friendly PP material that meets the national EO level standard, it is safe and environmentally friendly Advanced process anti-aging: it is made by special process, and anti-aging ingredients are added to improve service life Wear resistant, sun resistant, frost resistant, and explosion-proof: resistant to high pressure at the moment of start-up, conducive to achieving explosion-proof effect, with a high safety factor for use.

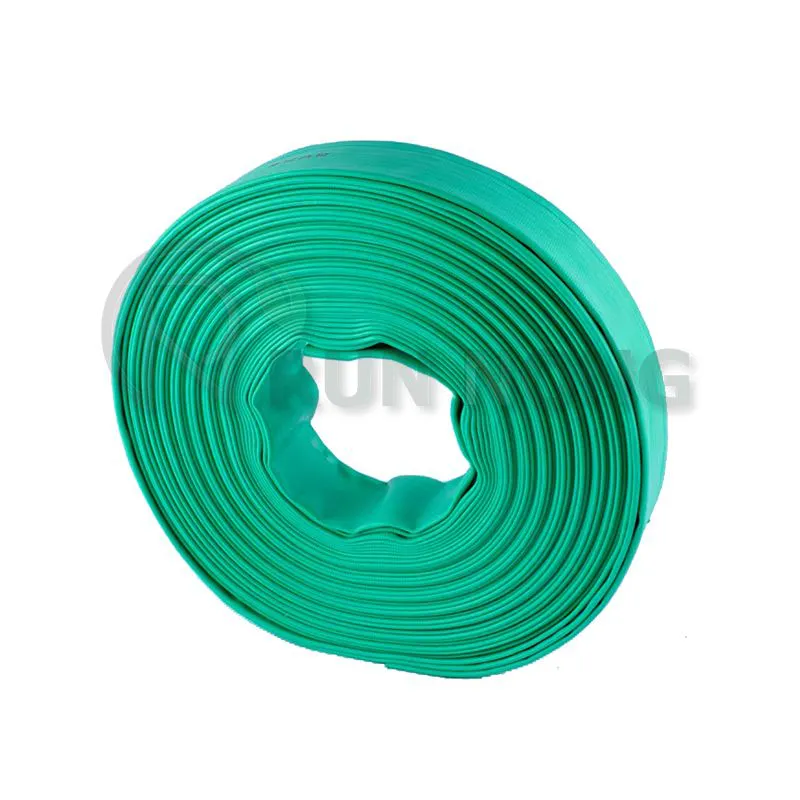

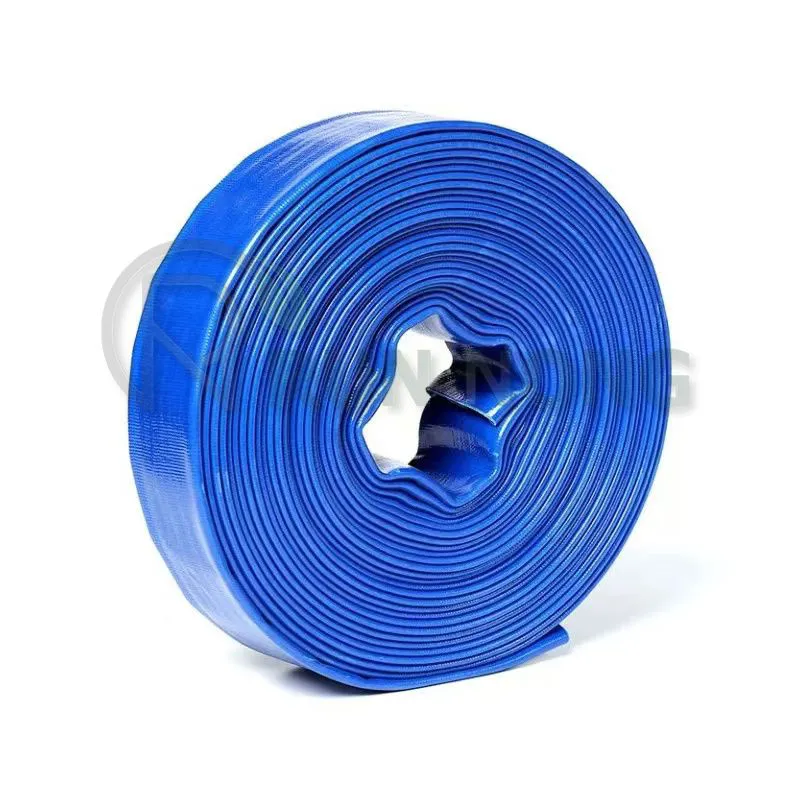

PVC FLAT HOSE
Polymer PVC material preferred double-layer polyester thread: using PVC double-sided coating with polyester thread greatly increases product pressure resistance Wear resistant, sun resistant, frost resistant, explosion-proof: wear-resistant, thickened, finely crafted, does not harden in low temperature environments, and can be used normally in cold/hot areas
| Size(inch) | Inner Diameter (mm) | Meters roll (m) | Pressure(B.P bar) |
| 2' | 50 | 100 | 9bar |
| 2.5' | 63 | 100 | 9bar |
| 3' | 75 | 100 | 7bar |
| 3.5' | 90 | 100 | 7bar |
| 4' | 100 | 100 | 6bar |
| 4.5' | 110 | 100 | 6bar |
| 5' | 130 | 100 | 6bar |
| Size(inch) | Inner Diameter (mm) | Meters roll (m) | Pressure(B.P bar) |
| 2' | 50 | 60 | 15bar |
| 2.5' | 63 | 60 | 15bar |
| 3' | 75 | 60 | 13bar |
| 3.5' | 90 | 60 | 12bar |
| 4' | 100 | 60 | 12bar |
| 4.5' | 110 | 60 | 12bar |
| Size(inch) | Inner Diameter (mm) | Meters roll (m) | Pressure(B.P bar) |
| 2' | 50 | 60 | 13bar |
| 2.5' | 63 | 60 | 13bar |
| 3' | 75 | 60 | 12bar |
| 3.5' | 90 | 60 | 10bar |
| 4' | 100 | 60 | 10bar |
| 4.5' | 110 | 60 | 10bar |
| 5' | 130 | 60 | 10bar |
All models support customization
